W1000S Wireless HDMI SDI Video Transmitter System - 1000FT Range, 0.08s Low Latency, Real-Time APP Monitoring for Live Streaming, Events & Film Production

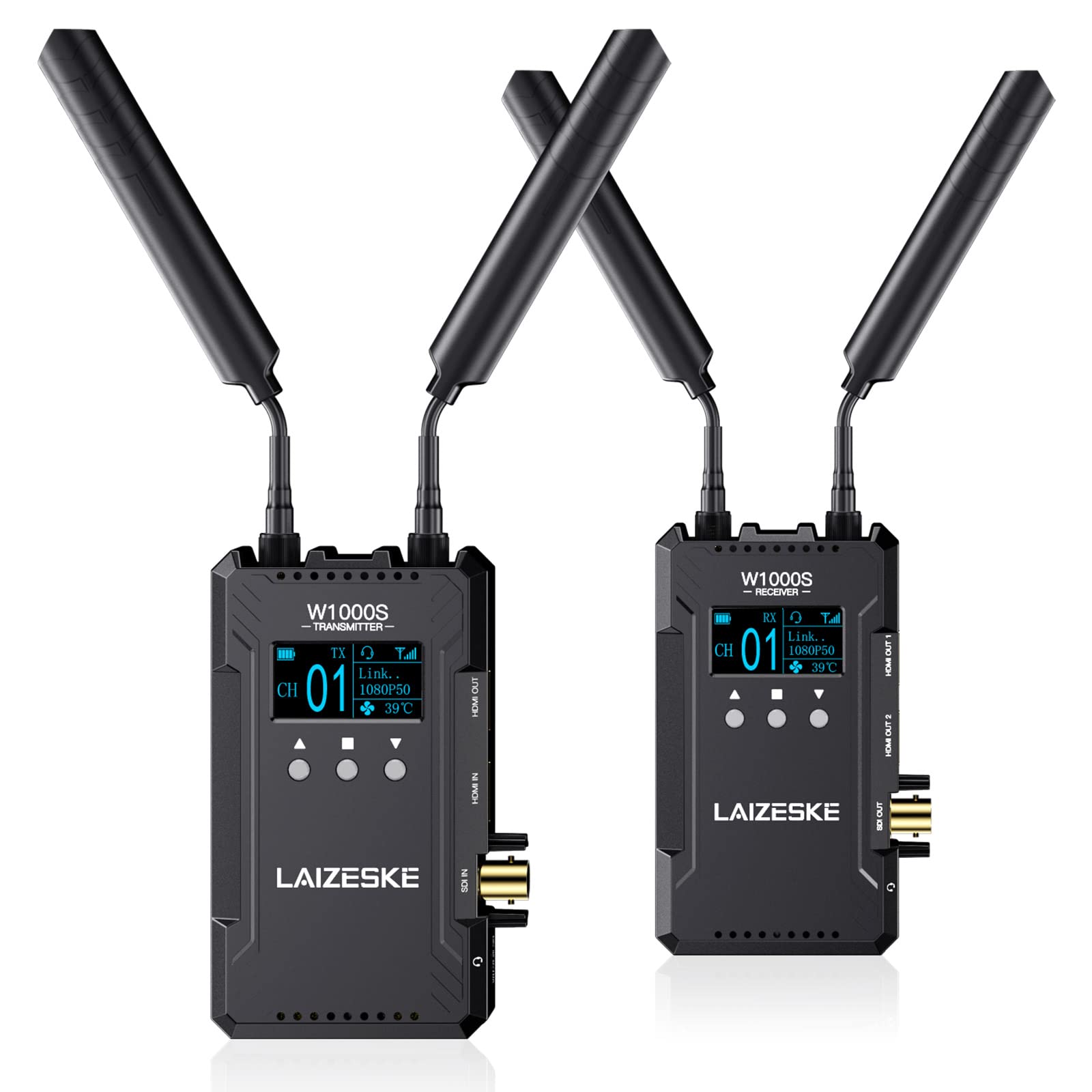

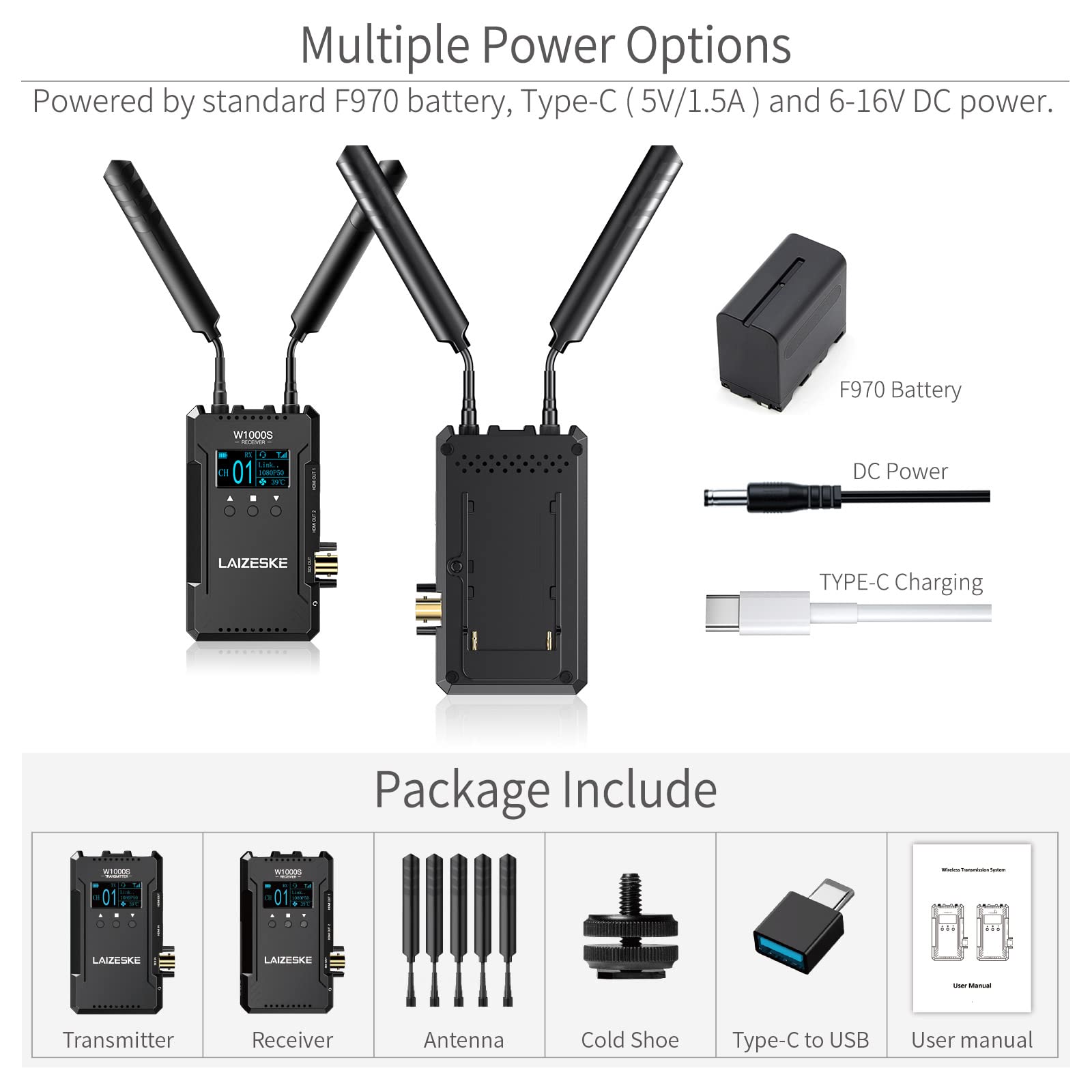

Full Duplex Intercom Wireless Video Transmission System LAIZESKE W1000S TX/RX set is a real-time wireless video transmission system integrated with intercom which enable communication between the director and the photographer as well as wireless video transmission system functions, save your time and costs to set an extra intercom system. Supports SDI and dual HDMI wirelessly transmission range in 300 meters (max 400m) with 0.08S ultra-low latency, up to 1080P/60Hz video signal provide higher quality image. Supports one transmitter to multiple receivers, the transmitter can be switched as receiver at will. OLED screen show link status, signal strength, video format, intercom mode, battery level, temperature, fan status, etc. information. Android/iOS system APP monitoring; mulitple power options. Ideal for filmmaking, sports events, wedding live broadcast, church live streaming, etc. HDMI Format: 480P60, 576P60 720P60/59.94/50 1080P60/59.94/50/30/29.97/25/24/23.98 1080I60/59.94/50 SDI Format: 480P60, 576P60 720P60/59.94/50 1080P60/59.94/50/30/29.97/25/24/23.98 1080I60/59.94/50 Key Features: * Dual HDMI + SDI signal interfaces, meet your different needs * More than 1000ft transmission range with 0.08S ultra-low latency * Up to 1080P@60Hz, provide high quality image * Wireless full-duplex talkback, real-time intercom between the director and the photographer * The transmitter can be switched as a receiver at will * One TX to multiple RX, monitoring for everyone on set * Real-time APP monitoring for Android/iOS system * 13 frequency channels, AUTO channel scan LAIZESKE W1000S Video Transmission System Uprade to Version 1.1.9 In order to improve user experience,we updated the W1000S to V1.1.9. The user who has purchased can update the firmware. The Laizeske W1000S FAQ Setting Method: Q: Connection State, the screen appears mosaic or the signal connection is unstable? A:It means that there is a wifi signal close to the transmission frequency, you can re-select another channel. Only the receiver is allowed to adjust the channel in the connected state, press the up and down keys to select the channel, and press the menu key in the middle to confirm the channel. Q: Unconnection State, the transmitter and receiver cannot be connected? A: Please turn off the transmitter and receiver, and turn them on again at the same time, press the menu button in the middle, enter the WPS mode and turn it on, then it will pair automaticly. Notice: 1. When signal frequency is weak, please try to choose another channel with a wider frequency span. (For instance, the signal of channel 10 is weak, please choose channel 1 or 6, but not channel 9 or channel 11) 2. The poor wifi reception of the mobile phone is related to the brand and model of the mobile phone. Please try different mobile phones. Q: Latency A: W1000S adopts 5G wifi transmission technology, which can well avoid the influence of 2.4G signals in the environment, such as wifi signal interference caused by your household appliances, wireless mouse, etc., and has built-in up to 13 channels to ensure transmission stability and low latency. 1. However, the influence of environmental factors on the delay of wifi transmission is inevitable. We recommend that you do a wifi signal test before starting your shooting, and turn off or stay away wifi signal sources that may have an impact and select the best signal channel. 2. Please make sure your camera output setting is 1080p and 50-60fps. Other settings may affect the delay and transmission stability. Innovation OLED Screen Design The W1000S has a creative OLED screen so you can check out all device status and control the system with displayed information on the screen. 1080P HD Image Quality The resolution supports 1080P60,1080i60 and under 1080P60 format, provide a higher quality image. Bulit-in Fan, Effective Cooling The excellent cooling design enable the device working long time in hot environment as well. FEELWORLD F5 Pro 5.5 Inch Touchscreen Monitor with F970 External Kit Install FEELWORLD LUT5 5.5 Inch 3000nits Ultra Bright DSLR Camera Field Monitor FEELWORLD FT6 FR6 5.5 Inch Wireless Video Transmission DSLR Camera Field Monitor FEELWORLD F7 PRO 7 Inch Touch DSLR Camera Field Monitor Lut F970 External Kit FEELWORLD LUT7 PRO 7 Inch Ultra Bright 2200nits Touch DSLR Camera Field Monitor FEELWORLD LUT7S PRO 7 Inch Ultra Bright 2200nits HDR DSLR Camera Field Monitor Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 457 4.3 out of 5 stars 31 3.6 out of 5 stars 37 4.2 out of 5 stars 80 4.2 out of 5 stars 59 4.0 out of 5 stars 17 Price — no data $279.99$279.99 $290.00$290.00 $179.99$179.99 $284.99$284.99 $379.99$379.99 Screen Size 5.5" Touch Screen 5.5" Touch Screen 5.5" Touch Screen 7" Touch Screen 7" Touch Screen 7" Touch Screen Resolution 1920 x 1080 pixels 1920 x 1080 pixels 1920 x 1080 pixels 1920x1200 pixels 1920x1200 pixels 1920x1200 pixels Aspect Ratio 16:9 16:9 16:9 16:10 16:10 16:10 Brightness 500cd/m² 3000cd/m² 500cd/m² 500cd/m² 2200cd/m² (Light Sensor) 2200cd/m² (Light Sensor) Contrast 1000:1 1000:1 1000:1 1200:1 1200:1 1200:1 Signal Inputs 4K HDMI, Type-C 5V In HDMI HDMI HDMI HDMI HDMI, 3G-SDI, SD Card Signal Outputs 4K HDMI, Stereo Headphone, DC OUT 8.4V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera) HDMI, DC OUT 8V, Stereo Headphone HDMI, Stereo Headphone, DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera) HDMI, DC OUT 8V, Stereo Headphone HDMI, DC OUT 8V, Stereo Headphone HDMI, 3G-SDI, DC OUT 8V, Stereo Headphone Features 3D LUT, Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Nine Grid, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Center Marker, Safe Area, Ratio marker, Marker Color, Check Field, Image Flip 3D LUT, HDR, Waveform, Vector Scope, RGB Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Nine Grid, Center Marker, Safety Marker, Ratio Marker, Check Field, Image Flip 3D LUT, HDR, All Waves display, Parada, Vector, Histogram, Focus assist, False color 3D LUT, HDR, Waveform, Vectorscope, Histogram, Peaking Focus Assist, False Color, Exposure, Check Field, Zoom, Anamorphic Mode, Image Flip, Nine Grid, Pixel to Pixel, Center Marker, Safety Marker, Ratio Marker 3D LUT, HDR, Waveform, Vectorscope, Histogram, Peaking Focus Assist, False Color, Exposure, Check Field, Zoom, Anamorphic Mode, Image Flip, Nine Grid, Pixel to Pixel, Center Marker, Safety Marker, Ratio Marker 3D LUT, HDR, Waveform, Vectorscope, Histogram, Peaking Focus Assist, False Color, Exposure, Check Field, Zoom, Anamorphic Mode, Image Flip, Nine Grid, Pixel to Pixel, Center Marker, Safety Marker, Ratio Marker Unit Size 148Lx93Hx20D (mm) 142Lx86Hx28D(mm) 148Lx103.5Hx41W (mm) 175Lx105Hx22D(mm) 190Lx126Hx27D (mm) 190Lx126Hx27D (mm) Unit Weight 245g 270g 370g 330g 450g 450g

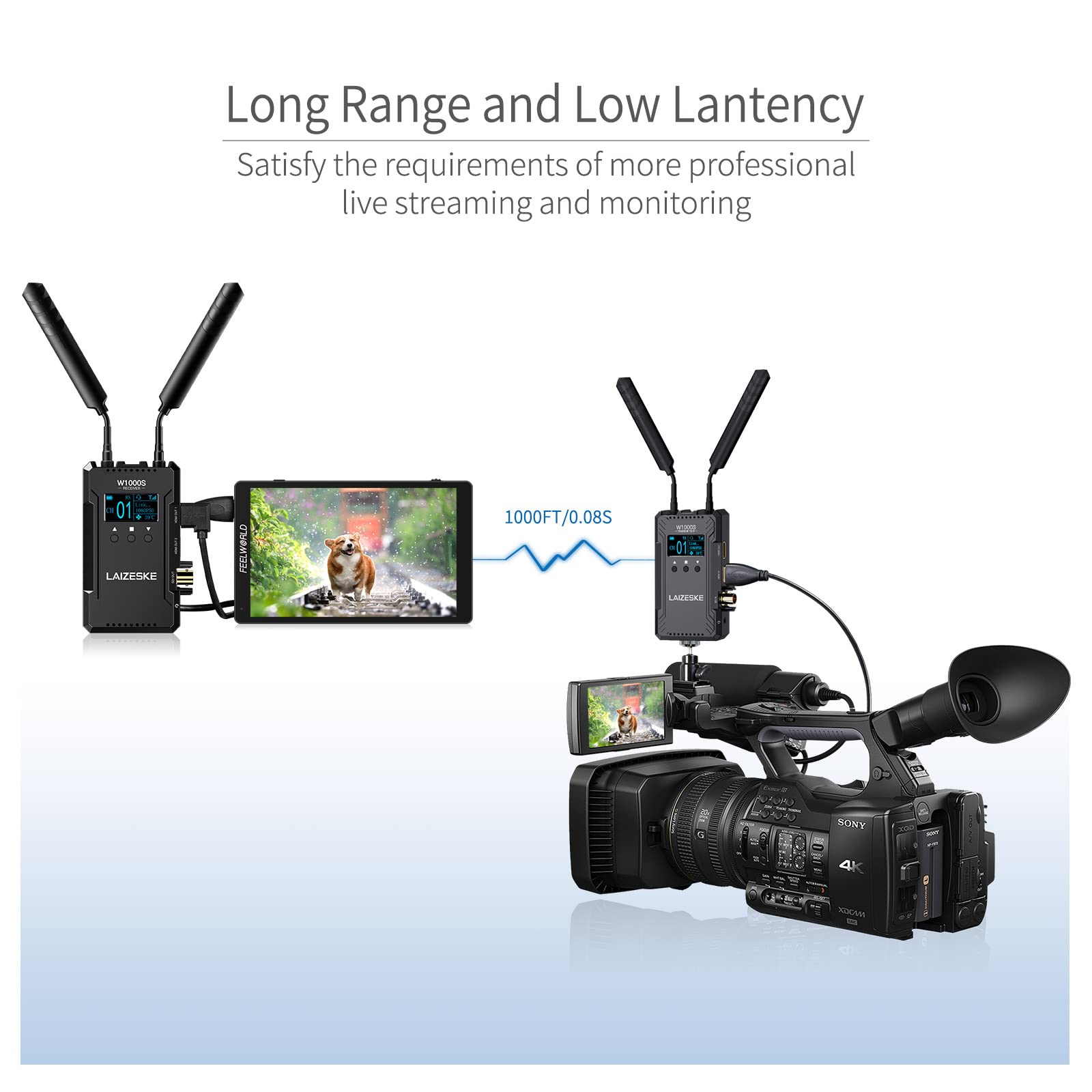

【Long Range and Low Lantency】It has more than 1000ft hassle-free and reliable range for wireless video and audio transmission; 0.08S achievable latency for real-time monitoring that enables.

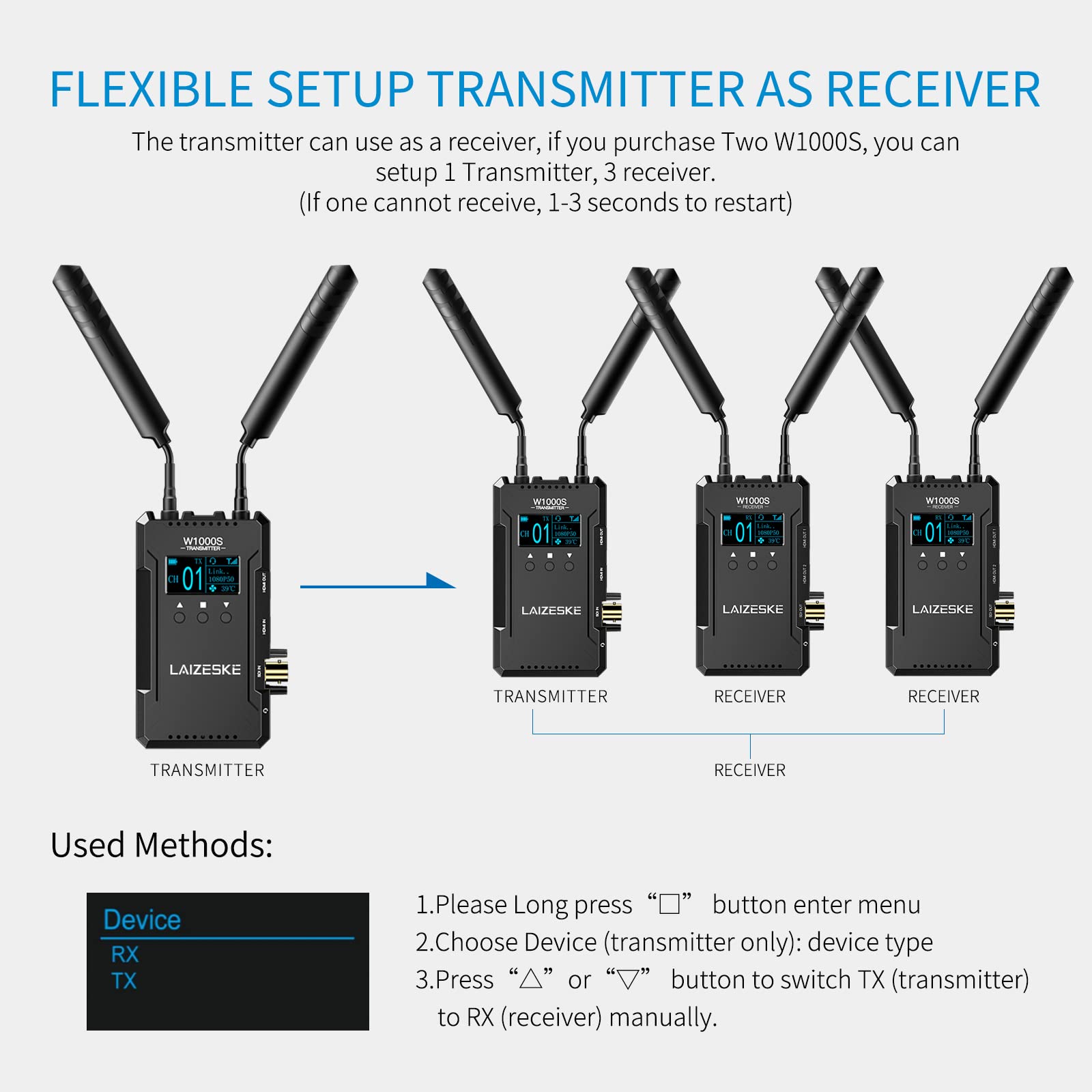

【HDMI and SDI 】SDI input HDMI input and output on TX; SDI and dual HDMI output on RX meet your different needs. The transmitter can be switched as a receiver at will, define working mode freely, fulfill multiple use cases.

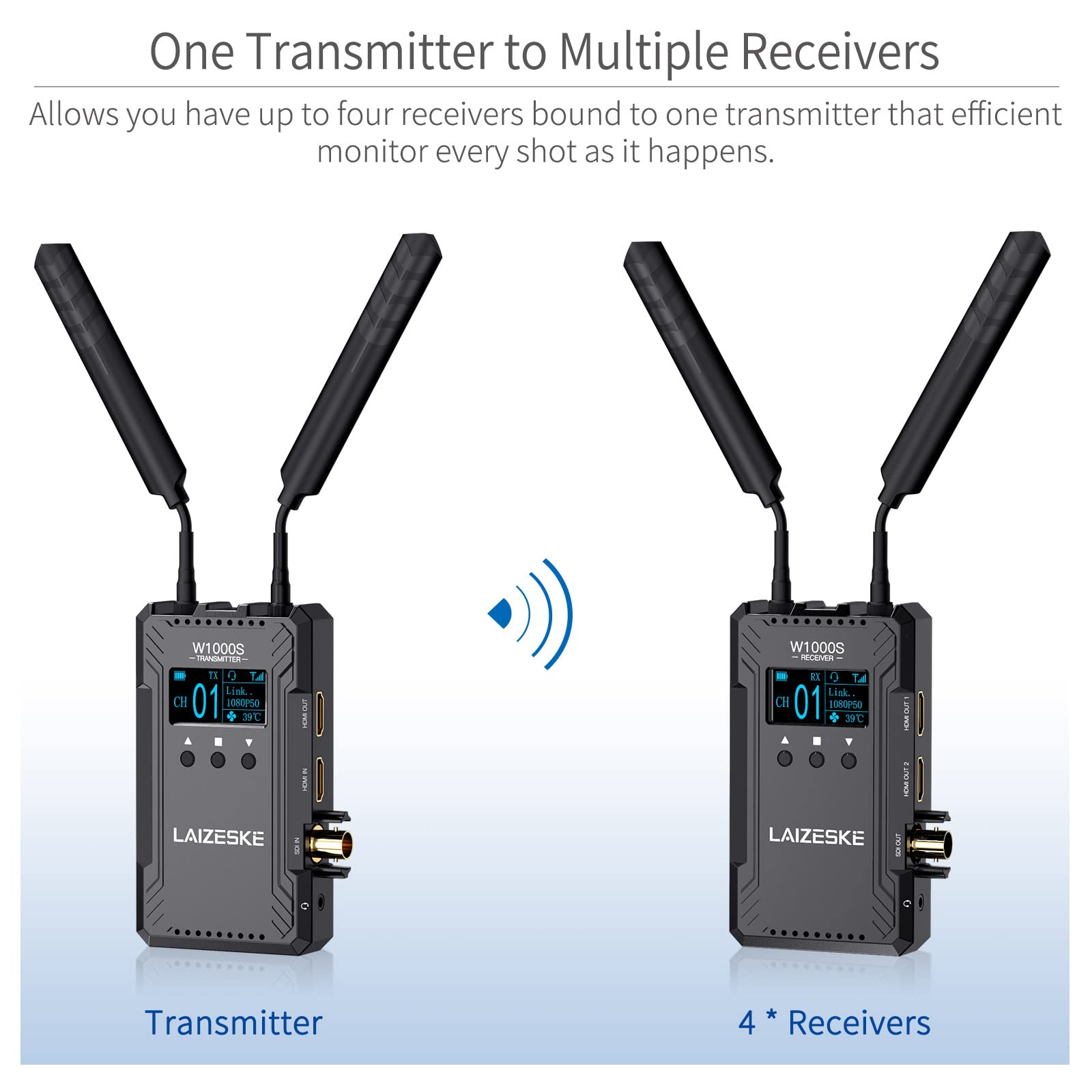

【One Transmitter to Multiple Receivers】1080P HD Image quality. Allows you have up to four receivers bound to one transmitter that efficient your crew monitor every shot as it happens.

【13 Frequency Channels】Automatically scan the current environment to find out available channels and avoid the channels with interference.

【Real-Time APP Monitoring】Supports both Android and IOS system APP monitoring, up to 4 phones or tablets real-time monitoring with professional monitor features, such as monochrome, false color and center mark.
