Revolutionizing Music Streaming and DAC Technology
The Eversolo DMP-A6 Master Edition is a testament to innovation in the world of digital audio. As an all-in-one DAC and streamer, it's designed to offer pure and accurate audio, reflecting years of engineering expertise to solve traditional challenges in music streaming.
Advanced DAC Components for Unmatched Audio Purity
This Master Edition elevates the standard DMP-A6 with upgraded Accusilicon Femtosecond oscillators, ensuring greater noise reduction and improved jitter. The OPA1612 op-amp surpasses the OPA1642 in the standard edition, offering ultra-low noise and minimal distortion, and a unique gold faceplate for an aesthetic edge.
Exclusive EOS Audio Engine by Eversolo
At its core is the EverSolo Original-Sampling-Rate Audio Engine (EOS), an in-house developed technology enabling bit-perfect audio playback. This innovation allows bypassing Android OS restrictions, ensuring authentic audio reproduction.
Dual ES9038Q2M DAC for Superior Sound
The DMP-A6 Master Edition boasts two ESS ES9038Q2M DACs, each handling a separate channel. This dual-chip design significantly reduces interference, enhances the signal-to-noise ratio, and improves dynamic range, supporting ultra-high-resolution formats like DSD512, PCM768@32bit, and MQA decoding.
Touchscreen Interface for Enhanced User Experience
A 6" LCD touchscreen provides a user-friendly interface, making navigation through system settings, music browsing, and third-party apps seamless and intuitive.
Multi-channel Streaming and High Precision HDMI Clock
Its multi-channel streaming capability is powered by DOH processing chips for DSD audio over HDMI, providing raw multi-channel output and DSD to PCM output. The independent HDMI clock offers high precision and accuracy in audio delivery.
Versatile Storage Options and High-Performance Power Supply
With an internal M.2 NVMe SSD slot supporting up to 4TB, the Master Edition allows easy installation without disassembling the device. The low-noise power supply, complemented by audio capacitors and a choke filter circuit, ensures clean power delivery for clear musical details.

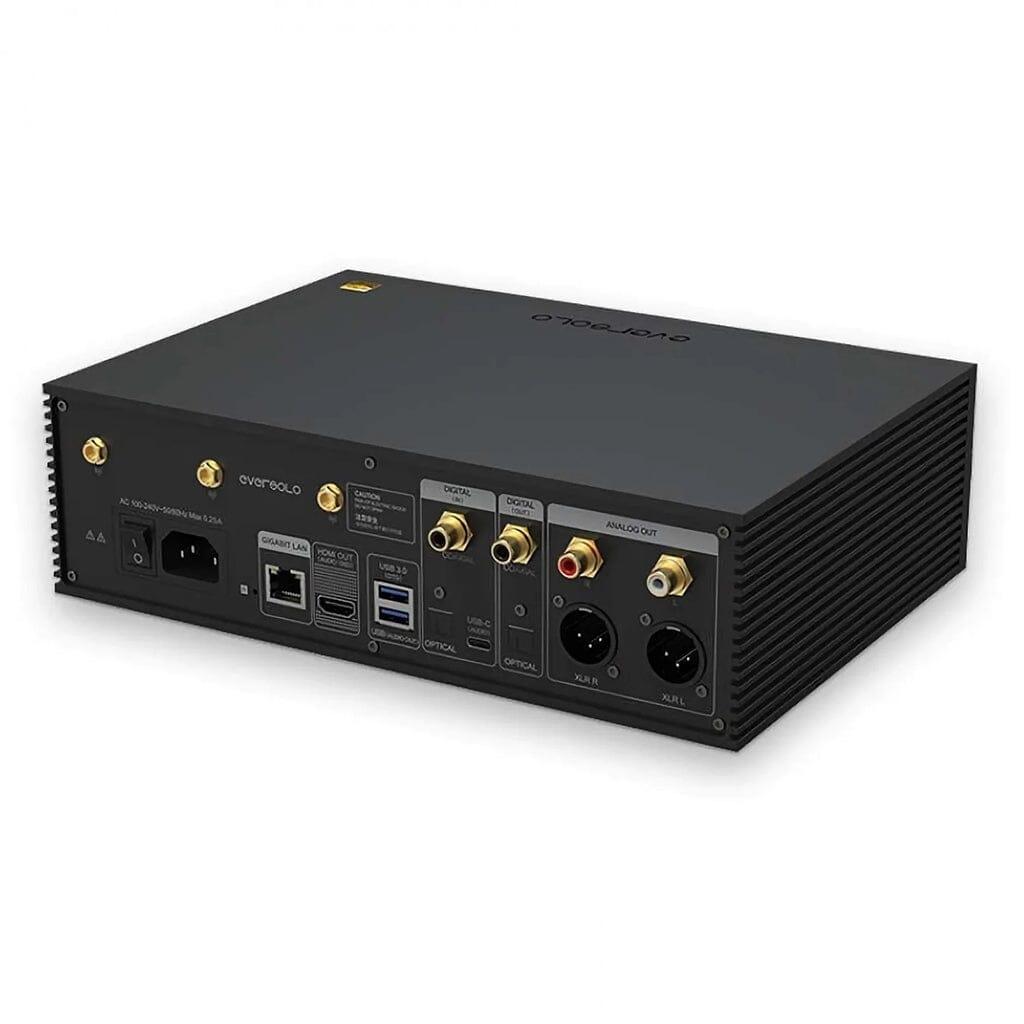

Expansive Connectivity and 3rd Gen XMOS 316 Audio Processor
The DMP-A6 Master Edition offers a rich selection of digital and analog inputs and outputs, including USB, HDMI, Bluetooth, and Wi-Fi. The 3rd Gen XMOS 316 processor enhances USB bandwidth for lossless Hi-Def audio data transmission.
Precision Engineering for Optimal Audio Performance
Low-jitter high-precision dual clocks and upgraded oscillators reduce noise and jitter, working in harmony with the op-amp for a purer audio experience. The fully balanced preamp circuit, from the DAC chip to the outputs, ensures consistent signal quality and noise immunity.
Handpicked Components for Monitor-Level Sound Quality
The analog output's sound quality is of monitor level, thanks to premium components like WIMA capacitors, NICHCON audio capacitors, Murata capacitors, Omron relays, and TI audio operational amplifiers, all carefully selected for their superior performance.
Unlimited Music Services and Wireless Streaming
The DMP-A6 Master Edition supports popular music services like TIDAL, Qobuz, and Amazon Music, offering high-quality online music and endless streaming options. Roon Ready, Tidal Connect, and DLNA capabilities enable easy home playback and online streaming.
Effective Media Management and CD Ripping
Its powerful system efficiently manages local and network storage, supporting CD playback and ripping with data validation and error correction for lossless audio saving. The Smart Control App, available for Android and iOS, adds to the device's versatility, offering control, music library data viewing, and screen mirroring.
The Eversolo DMP-A6 Master Edition embodies the pinnacle of audio streaming and DAC technology. Designed for audiophiles who seek nothing but the best, it offers a pure, accurate, and immersive audio experience, consolidating local music collections and online streaming into a simple yet powerful system.
| EverSolo DMP-A6 Master Edition Specifications |
|---|
| Model | EverSolo DMP-A6 Master Edition |
| Display | 6" LCD touchscreen |
| Internal Memory | 4GDDR4 +32GeMMC |
| CPU | Quad-core ARM Cortex-A55 Pro |
| DAC | (x2) ES 9038Q2M |
| Audio Processor | Gen 3 XMOS XU316 |
| Op-amp Chip | OPA1612 |
| SSD | M.2 NVME 3.0 2280 protocol, up to 4TB |
| USB | USB-A (3.0) Out | USB-C: Windows, Mac, Android, IOS, Supports DSD512, PCM 768KHz 32Bit, MQA |
| Ethernet | RJ-45 (10/100/1000 GB) | NFS, SMB v1/2/3, UPnP protocols |
| WiFi | 2.4G+5G dual band |
| Bluetooth | BT 5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC |
| Playback and DAC Decoding | DSD512, PCM 768KHz 32Bit, MQA |
| Music Service | Tidal, Qobuz, HighresAudio, Amazon, WebDAV, UPnP |
| Streaming | Roon Ready, Air Play, DLNA, Spotify, Tidal Connect, Qobuz Connect |
| Optical/Coaxial In/Out | Supports PCM 192KHz 24Bit, DSD64 Dop, MQA |
| HDMI Audio Output | DSD64 Native multi-channel/PCM192KHz multichannel raw output (up to 5.1) |
| Control Method | Mobile App, Touch screen control |
| XLR Output | Output level: 5.2V
Frequency response: 20Hz~20KHz (±0.15dB)
Dynamic range: >128dB
SNR: >128dB
THD+N: <0.00009% (-120dB) @A-wt
Crosstalk: >-125dB |
| RCA Output | Output level: 2.6V
Frequency response: 20Hz~20KHz (±0.2dB)
Dynamic range: >124dB
SNR: >124dB
THD+N: <0.00011%(-119dB)@A-WT
Crosstalk: >-124dB |
| Power Supply | AC 110~240V 50/60Hz | low noise, high quality switching |
| Rated Power | 13W |
| Dimensions | 10.6" x 7.4" x 3.5" |
